EPD additional content

EPD additional content VOCOMP®

VOCOMP®-20 VOCOMP®-25 VOCOMP®-30 EPD additional content

Data

Background This product-specific plant-specific declaration was created by collecting production data from the following plant locations: Cartersville, GA, USA; Ft Worth, TX, USA; Goodyear, AZ, USA; Hampshire, IL, USA; York, PA, USA; Benicia, CA, USA; Milton, Ontario, CAN; Sherwood Park, Alberta, CAN. All unit processes were modeled using primary data. Secondary data sources include those available in the ecoinvent v3.10 and US-EI 2.2 databases.

W. R. MEADOWS' VOCOMP and MEL-PRIME products fall within the general category of curing, sealing, and priming coatings. The product life for coatings is typically defined by market lifetime (5 years) and technical life (either 5, 10, or 20 years), depending on performance in durability tests as outlined in the PCR.

However, no market life was considered in the LCA model for VOCOMP and MEL-PRIME because both products are designed for one-time application only. VOCOMP functions as a curing and sealing compound applied to concrete surfaces immediately after placement, while MEL-PRIME is a primer used to enhance adhesion for subsequent membrane applications. These products do not require reapplication over the lifetime of a structure.

Allocation The W. R. MEADOWS facility produces multiple types of products each year. To allocate electricity and natural gas consumption accurately to each product, total annual energy consumption was distributed based on the proportion of each product's annual production (by mass) relative to the total plant production. This approach assigns manufacturing activities proportionally to each product type.

All associated manufacturing resources and waste flows were allocated using the same approach. There are no co‐products produced during their manufacturing processes. The model used in the LCA ensures that the sum of the allocated inputs and outputs of a unit process shall be equal to the inputs and outputs of the unit process before allocation. This means that no double counting or omissions of inputs or outputs through allocation is occurring.

Cut-off criteria for the inclusion of mass and energy flows are 1% of renewable primary resource (energy) usage, 1% nonrenewable primary resource (energy) usage, 1% of the total mass input of that unit process, and 1% of environmental impacts. The total of neglected input flows per module does not exceed 5% of energy usage, mass, and environmental impacts.

The only exceptions to these criteria are substances with hazardous and toxic properties, which must be listed even when the given process unit is under the cut-off criterion of 1% of the total mass. No known flows are deliberately excluded from this declaration, and no substances considered to be hazardous or toxic according to the Resource Conservation and Recovery Act (RCRA), Subtitle C are present in the products. Therefore, these criteria have been met. Biogenic carbon is included in reported results.

Data quality assessment

Precision: The precision of the data is considered high. Product engineers provided detailed bills of materials, and facility managers provided utility information for the manufacturing facilities. The raw material transportation distances were calculated based on the raw material manufacturers’ addresses, extracted from the relevant SDSs. Proxy datasets were utilized in the LCA model when secondary data were not available.

Completeness: The data included is considered complete. The LCA model included all known material and energy flows. As pointed out in that section, no known flows above 1% were excluded and the sum of all excluded flows totals less than 5%, whether evaluated by mass, energy, or potential environmental impact.

Consistency: The consistency of the model is considered high. The bills of materials provided by the product engineers were developed for multiple internal departments use and are maintained regularly.

The LCA practitioner also cross-referenced the installation documents and other relevant information to ensure consistency. Furthermore, modeling assumptions were consistent across the model, with preference given towards SimaPro data, where available.

Scenarios and additional technical information

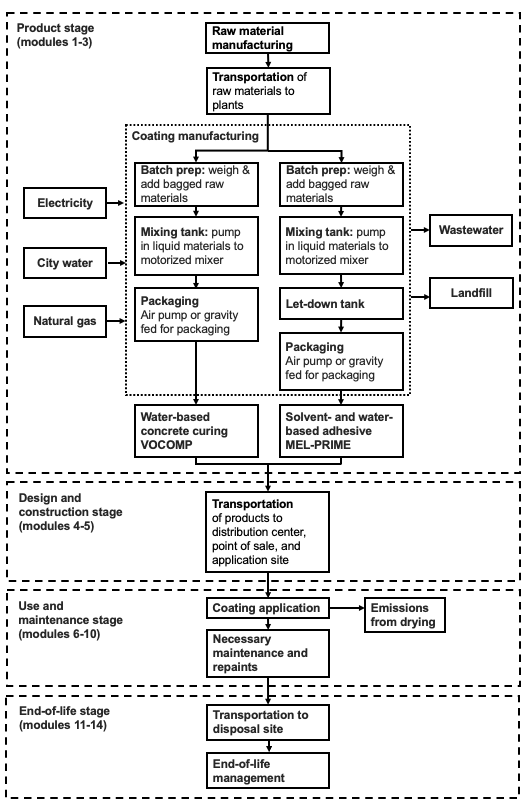

Flow diagram

Assumptions and Limitations

Primary data were modeled based on the information provided by W. R. MEADOWS and supplemented by data contained in the technical and safety data sheets. Proxy materials were used when matching secondary data sets were not identified.
Since energy inputs were not available per product’s manufacturing process, electricity and natural gas consumption were allocated proportionately based on the annual square foot production percentage for individual panel products versus total site production.
According to the PCR, 10% of the wet mass for all products is assumed to remain unused and is properly disposed of during the used stage.
It is recommended that the VOCOMP and MEL-PRIME products are not mixed or diluted with any other products are liquids, including colorants. Therefore, colorants were excluded from the scope of this study.
Generic data sets used for material inputs, transport, and waste processing are considered good quality, but actual impacts from material suppliers, transport carriers, and local waste processing may vary.
The impact assessment methodology categories do not represent all possible environmental impact categories.
LCA results are relative expressions and do not predict impacts on category endpoints, the exceeding of thresholds, safety margins, or risks.
It was also assumed that no emissions or uptake from calcination and carbonation took place during the life cycle of W. R. MEADOWS VOCOMP and MEL-PRIME products.
No "green power" is used in this LCA.
No renewable certificates or purchased CO₂ offsets are included in the LCA.

Resource use and waste flow indicators

Indicators	Acronyms used
Resource use indicators
Renewable primary energy used as energy carrier (fuel)	RPR_E
Renewable primary resources with energy content used as material	RPR_M
Total use of renewable primary resources with energy content	_RPR_total
Non-renewable primary resources used as an energy carrier (fuel)	NRPR_E
Non-renewable primary resources with energy content used as material	NRPR_M
Total use of non-renewable primary resources with energy content	_NRPR_total
Abiotic Depletion Potential (fossil)	ADP
Secondary materials	SM
Renewable secondary fuels	RSF
Non-renewable secondary fuels	NRSF
Recovered energy	RE
Use of net fresh water resources	FW
Output flows and waste category indicators
Hazardous waste disposed	HWD
Non-hazardous waste disposed	NHWD
High-level radioactive waste, conditioned, to final repository	HLRW
Intermediate- and low-level radioactive waste, conditioned, to final repository	ILLRW
Components for re-use	CRU
Materials for recycling	MR
Materials for energy recovery	MER
Exported energy	EE
Carbon emissions and removals
Biogenic Carbon Removal from Product	BCRP
Biogenic Carbon Emission from Product	BCEP
Biogenic Carbon Removal from Packaging	BCRK
Biogenic Carbon Emission from Packaging	BCEK
Biogenic Carbon Emission from Combustion of Waste from Renewable Sources Used in Production Processes	CBCEW
Calcination Carbon Emissions	CCE
Carbonation Carbon Removals	CCR
Carbon Emissions from Combustion of Waste from Non-Renewable Sources used in Production Processes	CWNR

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Benicia, CA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	1.80E-02	1.73E-01	2.05E-02	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	3.67E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	1.80E-02	1.80E-01	2.05E-02	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	3.67E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	1.78E-02	1.69E-01	2.02E-02	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	3.58E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	1.78E-02	1.75E-01	2.02E-02	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	3.58E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	2.55E-10	4.65E-09	2.91E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	7.22E-09
Acidification	kg SO2 eq	3.77E-04	4.39E-05	4.53E-04	5.00E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	1.01E-03
Eutrophication	kg N eq	5.29E-05	2.99E-06	3.18E-05	3.40E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	1.00E-04
Smog	kg O3 eq	4.89E-03	1.13E-03	4.66E-03	1.28E-03	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	2.34E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	6.05E-06	4.40E-05	6.88E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	1.28E-04
Additional environmental information
Carcinogenics	CTUh	5.46E-10	1.14E-11	2.24E-10	1.29E-11	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	8.87E-10
Non-carcinogenics	CTUh	6.41E-09	2.19E-09	4.44E-09	2.50E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	2.02E-08
Ecotoxicity	CTUe	4.90E-02	4.47E-02	1.88E-02	5.09E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	2.14E-01
Fossil fuel depletion	MJ surplus	2.77E-01	3.39E-02	4.12E-01	3.85E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	8.23E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	3.91E-04	5.06E-01	4.45E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	5.76E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	3.91E-04	5.06E-01	4.45E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	5.76E-01
NRPRE	MJ, NCV	2.46E+00	2.55E-01	3.77E+00	2.90E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	7.29E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	2.55E-01	3.77E+00	2.90E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	8.38E+00
ADP	kg	0	2.20E+00	2.40E-01	3.06E+00	2.73E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	6.23E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	1.89E-03	8.76E-01	2.16E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	1.14E+00
Output flows and waste category indicators
HWD	kg	2.93E-03	5.57E-05	7.93E-04	6.34E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	4.20E-03
NHWD	kg	1.91E-02	2.21E-04	1.73E-01	2.51E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	3.81E-01
HLRW	kg	2.04E-07	2.94E-09	1.17E-07	3.32E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	3.51E-07
ILLRW	kg	6.91E-07	5.76E-09	4.10E-06	6.51E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	4.88E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Cartersville, GA)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	3.15E-03	5.50E-02	2.29E-02	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	2.36E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	3.15E-03	6.14E-02	2.29E-02	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	2.36E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	3.11E-03	5.31E-02	2.26E-02	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	2.30E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	3.11E-03	5.95E-02	2.26E-02	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	2.30E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	4.47E-11	2.12E-09	3.25E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	4.52E-09
Acidification	kg SO2 eq	3.77E-04	7.69E-06	1.83E-04	5.59E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	7.07E-04
Eutrophication	kg N eq	5.29E-05	5.22E-07	1.74E-05	3.80E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	8.35E-05
Smog	kg O3 eq	4.89E-03	1.97E-04	2.44E-03	1.43E-03	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	2.04E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	1.06E-06	2.92E-05	7.69E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	1.09E-04
Additional environmental information
Carcinogenics	CTUh	5.46E-10	1.99E-12	8.30E-11	1.45E-11	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	7.38E-10
Non carcinogenics	CTUh	6.41E-09	3.84E-10	1.71E-09	2.79E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.60E-08
Ecotoxicity	CTUe	4.90E-02	7.83E-03	1.69E-02	5.69E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	1.82E-01
Fossil fuel depletion	MJ surplus	2.77E-01	5.93E-03	2.19E-01	4.31E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	6.06E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	6.84E-05	2.62E-02	4.97E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	9.55E-02
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	6.84E-05	2.62E-02	4.97E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	9.55E-02
NRPRE	MJ, NCV	2.46E+00	4.47E-02	1.82E+00	3.25E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	5.16E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	4.47E-02	1.82E+00	3.25E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	6.25E+00
ADP	kg	0	2.20E+00	4.19E-02	1.66E+00	3.05E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	4.66E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	3.32E-04	1.40E-01	2.41E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	4.04E-01
Output flows and waste category indicators
HWD	kg
NHWD	kg	2.93E-03	9.76E-06	1.06E-03	7.09E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	4.42E-03
HLRW	kg	1.91E-02	3.86E-05	2.32E-01	2.81E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	4.40E-01
ILLRW	kg	2.04E-07	5.15E-10	1.56E-07	3.72E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	3.88E-07
CRU	kg	6.91E-07	1.01E-09	3.93E-07	7.28E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	1.17E-06
MR	kg	0	0	0	0	0	0	0	0	0	0	0	0
MER	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2
BCRK	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEK	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CBCEW	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
CCE	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Fort Worth, TX)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	1.15E-02	1.77E-02	1.06E-02	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	1.95E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	1.15E-02	2.41E-02	1.06E-02	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	1.95E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	1.14E-02	1.83E-02	1.05E-02	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	1.91E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	1.14E-02	2.47E-02	1.05E-02	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	1.91E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	1.64E-10	2.09E-10	1.51E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	2.55E-09
Acidification	kg SO2 eq	3.77E-04	2.81E-05	7.65E-05	2.60E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	5.91E-04
Eutrophication	kg N eq	5.29E-05	1.91E-06	7.01E-06	1.77E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	7.25E-05
Smog	kg O3 eq	4.89E-03	7.21E-04	1.17E-03	6.67E-04	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	1.89E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	3.87E-06	1.41E-05	3.58E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	9.24E-05
Additional environmental information
Carcinogenics	CTUh	5.46E-10	7.27E-12	2.87E-10	6.73E-12	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	9.39E-10
Non-carcinogenics	CTUh	6.41E-09	1.41E-09	1.92E-09	1.30E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.57E-08
Ecotoxicity	CTUe	4.90E-02	2.86E-02	3.21E-02	2.65E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	1.87E-01
Fossil fuel depletion	MJ surplus	2.77E-01	2.17E-02	1.96E-02	2.01E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	4.00E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	2.50E-04	2.03E-02	2.31E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.95E-02
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	2.50E-04	2.03E-02	2.31E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.95E-02
NRPRE	MJ, NCV	2.46E+00	1.63E-01	2.99E-01	1.51E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	3.58E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	1.63E-01	2.99E-01	1.51E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	4.68E+00
ADP	kg	0	2.20E+00	1.53E-01	2.61E-01	1.42E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.21E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	1.21E-03	5.47E-02	1.12E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.19E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	3.57E-05	4.29E-04	3.30E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.78E-03
NHWD	kg	1.91E-02	1.41E-04	6.60E-03	1.31E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.15E-01
HLRW	kg	2.04E-07	1.88E-09	4.21E-08	1.73E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.74E-07
ILLRW	kg	6.91E-07	3.68E-09	1.58E-07	3.39E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	9.32E-07
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Goodyear, AZ)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	1.27E-02	2.99E-02	1.48E-02	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	2.12E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	1.27E-02	3.63E-02	1.48E-02	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	2.12E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	1.25E-02	3.13E-02	1.46E-02	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	2.10E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	1.25E-02	3.78E-02	1.46E-02	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	2.10E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	1.80E-10	9.70E-10	2.10E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	3.39E-09
Acidification	kg SO2 eq	3.77E-04	3.10E-05	1.22E-04	3.61E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	6.50E-04
Eutrophication	kg N eq	5.29E-05	2.11E-06	1.33E-05	2.45E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	7.97E-05
Smog	kg O3 eq	4.89E-03	7.96E-04	1.54E-03	9.26E-04	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	1.96E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	4.27E-06	1.82E-05	4.97E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	9.82E-05
Additional environmental information
Carcinogenics	CTUh	5.46E-10	8.03E-12	3.13E-10	9.34E-12	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	9.68E-10
Non-carcinogenics	CTUh	6.41E-09	1.55E-09	1.92E-09	1.80E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.64E-08
Ecotoxicity	CTUe	4.90E-02	3.16E-02	3.65E-02	3.68E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	2.05E-01
Fossil fuel depletion	MJ surplus	2.77E-01	2.39E-02	4.60E-02	2.78E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	4.36E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	2.76E-04	3.88E-02	3.21E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	1.08E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	2.76E-04	3.88E-02	3.21E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	1.08E-01
NRPRE	MJ, NCV	2.46E+00	1.80E-01	6.12E-01	2.10E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	3.97E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	1.80E-01	6.12E-01	2.10E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	5.07E+00
ADP	kg	0	2.20E+00	1.69E-01	4.31E-01	1.97E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.45E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	1.34E-03	1.21E-01	1.56E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.85E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	3.94E-05	5.05E-04	4.58E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.87E-03
NHWD	kg	1.91E-02	1.56E-04	9.53E-03	1.81E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.18E-01
HLRW	kg	2.04E-07	2.08E-09	4.95E-08	2.40E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.82E-07
ILLRW	kg	6.91E-07	4.07E-09	1.35E-06	4.70E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	2.13E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Hampshire, IL)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	3.15E-03	2.72E-02	8.68E-03	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	1.94E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	3.15E-03	3.36E-02	8.68E-03	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	1.94E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	3.11E-03	2.76E-02	8.58E-03	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	1.90E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	3.11E-03	3.40E-02	8.58E-03	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	1.90E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	4.47E-11	4.54E-10	1.23E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	2.65E-09
Acidification	kg SO2 eq	3.77E-04	7.69E-06	1.06E-04	2.12E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	5.96E-04
Eutrophication	kg N eq	5.29E-05	5.22E-07	8.62E-06	1.44E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	7.24E-05
Smog	kg O3 eq	4.89E-03	1.97E-04	1.46E-03	5.44E-04	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	1.85E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	1.06E-06	1.45E-05	2.92E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	8.92E-05
Additional environmental information
Carcinogenics	CTUh	5.46E-10	1.99E-12	3.03E-10	5.48E-12	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	9.48E-10
Non-carcinogenics	CTUh	6.41E-09	3.84E-10	2.43E-09	1.06E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.50E-08
Ecotoxicity	CTUe	4.90E-02	7.83E-03	2.97E-02	2.16E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	1.59E-01
Fossil fuel depletion	MJ surplus	2.77E-01	5.93E-03	2.29E-02	1.63E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	3.83E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	6.84E-05	1.85E-02	1.89E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.74E-02
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	6.84E-05	1.85E-02	1.89E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.74E-02
NRPRE	MJ, NCV	2.46E+00	4.47E-02	4.42E-01	1.23E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	3.58E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	4.47E-02	4.42E-01	1.23E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	4.67E+00
ADP	kg	0	2.20E+00	4.19E-02	3.59E-01	1.16E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.17E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	3.32E-04	5.14E-02	9.14E-04	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.14E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	9.76E-06	3.63E-04	2.69E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.68E-03
NHWD	kg	1.91E-02	3.86E-05	5.60E-03	1.06E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.13E-01
HLRW	kg	2.04E-07	5.15E-10	3.57E-08	1.41E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.66E-07
ILLRW	kg	6.91E-07	1.01E-09	5.04E-07	2.76E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	1.27E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (York, PA)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	4.82E-02	1.36E-02	4.96E-03	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	2.22E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	4.82E-02	2.00E-02	4.96E-03	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	2.22E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	4.76E-02	1.43E-02	4.90E-03	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	2.18E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	4.76E-02	2.08E-02	4.90E-03	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	2.18E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	6.85E-10	5.55E-10	7.04E-11	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	3.34E-09
Acidification	kg SO2 eq	3.77E-04	1.18E-04	8.99E-05	1.21E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	6.80E-04
Eutrophication	kg N eq	5.29E-05	8.00E-06	9.40E-06	8.23E-07	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	8.00E-05
Smog	kg O3 eq	4.89E-03	3.02E-03	1.20E-03	3.11E-04	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	2.09E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	1.62E-05	1.64E-05	1.67E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	1.05E-04
Additional environmental information
Carcinogenics	CTUh	5.46E-10	3.05E-11	2.91E-10	3.13E-12	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	9.62E-10
Non-carcinogenics	CTUh	6.41E-09	5.88E-09	1.68E-09	6.05E-10	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.92E-08
Ecotoxicity	CTUe	4.90E-02	1.20E-01	3.57E-02	1.23E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	2.68E-01
Fossil fuel depletion	MJ surplus	2.77E-01	9.08E-02	1.80E-02	9.34E-03	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	4.56E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	1.40E-04	1.54E-02	1.08E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.44E-02
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	1.40E-04	1.54E-02	1.08E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	8.44E-02
NRPRE	MJ, NCV	2.46E+00	9.13E-02	2.97E-01	7.04E-02	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	3.43E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	9.13E-02	2.97E-01	7.04E-02	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	4.52E+00
ADP	kg	0	2.20E+00	8.57E-02	2.17E-01	6.61E-02	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.02E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	6.78E-04	6.82E-02	5.22E-04	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.31E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	1.99E-05	5.05E-04	1.54E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.82E-03
NHWD	kg	1.91E-02	7.89E-05	7.75E-03	6.08E-05	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.16E-01
HLRW	kg	2.04E-07	1.06E-09	4.95E-08	8.06E-10	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.80E-07
ILLRW	kg	6.91E-07	2.07E-09	6.04E-07	1.58E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	1.37E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Milton, Ontario, Canada)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	1.27E-02	8.83E-03	2.53E-02	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	2.02E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	1.27E-02	1.52E-02	2.53E-02	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	2.02E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	1.25E-02	9.63E-03	2.50E-02	1.72E-02	0	1.89E-02	1.16E-04	0	4.82E-05	2.88E-03	1.98E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	1.25E-02	1.60E-02	2.50E-02	1.72E-02	0	1.14E-02	1.16E-04	0	4.82E-05	2.88E-03	1.98E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	1.80E-10	4.48E-10	3.60E-10	2.47E-10	0	1.61E-10	3.96E-13	0	7.97E-13	9.85E-12	3.01E-09
Acidification	kg SO2 eq	3.77E-04	3.10E-05	5.65E-05	6.18E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.35E-07	2.26E-06	6.10E-04
Eutrophication	kg N eq	5.29E-05	2.11E-06	6.15E-06	4.20E-06	2.88E-06	0	5.32E-06	2.39E-08	0	1.49E-08	5.96E-07	7.42E-05
Smog	kg O3 eq	4.89E-03	7.96E-04	9.58E-04	1.59E-03	1.09E-03	0	4.91E-04	9.78E-03	0	7.23E-06	6.25E-05	1.97E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	4.27E-06	1.39E-05	8.52E-06	5.84E-06	0	5.88E-06	1.33E-08	0	2.94E-08	3.31E-07	9.75E-05
Additional environmental information
Carcinogenics	CTUh	5.46E-10	8.03E-12	2.74E-10	1.60E-11	1.10E-11	0	5.56E-11	1.00E-12	0	1.03E-14	2.50E-11	9.36E-10
Non-carcinogenics	CTUh	6.41E-09	1.55E-09	1.54E-09	3.09E-09	2.12E-09	0	7.12E-10	7.07E-11	0	2.13E-12	1.76E-09	1.73E-08
Ecotoxicity	CTUe	4.90E-02	3.16E-02	3.37E-02	6.30E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.22E-06	2.70E-03	2.28E-01
Fossil fuel depletion	MJ surplus	2.77E-01	2.39E-02	1.29E-02	4.77E-02	3.27E-02	0	2.77E-02	4.38E-05	0	9.03E-05	1.09E-03	4.23E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	2.76E-04	2.15E-02	5.51E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	9.11E-02
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	2.76E-04	2.15E-02	5.51E-04	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	9.11E-02
NRPRE	MJ, NCV	2.46E+00	1.80E-01	2.50E-01	3.59E-01	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	3.76E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	1.80E-01	2.50E-01	3.59E-01	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	4.86E+00
ADP	kg	0	2.20E+00	1.69E-01	1.62E-01	3.37E-01	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.32E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	1.34E-03	1.25E-01	2.67E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.90E-01
Output flows and waste category indicators
HWD	kg
NHWD	kg	2.93E-03	3.94E-05	4.75E-04	7.85E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.88E-03
HLRW	kg	1.91E-02	1.56E-04	7.29E-03	3.11E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.15E-01
ILLRW	kg	2.04E-07	2.08E-09	4.66E-08	4.11E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.81E-07
CRU	kg	6.91E-07	4.07E-09	7.26E-07	8.05E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	1.50E-06
MR	kg	0	0	0	0	0	0	0	0	0	0	0	0
MER	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-20 (Sherwood, Alberta, Canada)

Parameter	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.15E-01	4.82E-02	4.61E-02	4.17E-03	1.74E-02	0	1.92E-02	1.31E-04	0	4.88E-05	3.26E-03	2.54E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.16E-01	4.82E-02	5.25E-02	4.17E-03	1.74E-02	0	1.17E-02	1.31E-04	0	4.88E-05	3.26E-03	2.54E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.12E-01	4.79E-02	4.62E-02	4.12E-03	1.72E-02	0	1.89E-02	1.16E-04	0	5.19E-04	2.88E-03	2.50E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-1.08E-03	0	-6.41E-03	0	0	0	7.49E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.13E-01	4.79E-02	5.26E-02	4.12E-03	1.72E-02	0	1.14E-02	1.16E-04	0	5.19E-04	2.88E-03	2.50E-01
Ozone depletion	kg CFC-11 eq	1.61E-09	6.89E-10	6.71E-10	5.92E-11	2.47E-10	0	1.61E-10	3.96E-13	0	8.58E-12	9.85E-12	3.45E-09
Acidification	kg SO2 eq	3.77E-04	1.18E-04	2.02E-04	1.02E-05	4.24E-05	0	3.78E-05	9.09E-08	0	2.53E-06	2.26E-06	7.93E-04
Eutrophication	kg N eq	5.29E-05	8.05E-06	1.92E-05	6.92E-07	2.88E-06	0	5.32E-06	2.39E-08	0	1.60E-07	5.96E-07	8.99E-05
Smog	kg O3 eq	4.89E-03	3.04E-03	2.20E-03	2.61E-04	1.09E-03	0	4.91E-04	9.78E-03	0	7.79E-05	6.25E-05	2.19E-02
Respiratory effects	kg PM2.5 eq	5.87E-05	1.63E-05	2.23E-05	1.40E-06	5.84E-06	0	5.88E-06	1.33E-08	0	3.16E-07	3.31E-07	1.11E-04
Additional environmental information
Carcinogenics	CTUh	5.46E-10	3.06E-11	3.35E-10	2.63E-12	1.10E-11	0	5.56E-11	1.00E-12	0	1.11E-13	2.50E-11	1.01E-09
Non-carcinogenics	CTUh	6.41E-09	5.92E-09	2.57E-09	5.09E-10	2.12E-09	0	7.12E-10	7.07E-11	0	2.29E-11	1.76E-09	2.01E-08
Ecotoxicity	CTUe	4.90E-02	1.21E-01	3.62E-02	1.04E-02	4.32E-02	0	5.01E-03	1.08E-04	0	6.70E-05	2.70E-03	2.67E-01
Fossil fuel depletion	MJ surplus	2.77E-01	9.13E-02	5.77E-02	7.85E-03	3.27E-02	0	2.77E-02	4.38E-05	0	9.72E-04	1.09E-03	4.96E-01
Resource use indicators
RPRE	MJ, NCV	6.20E-02	1.05E-03	3.39E-02	9.07E-05	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	1.04E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	6.20E-02	1.05E-03	3.39E-02	9.07E-05	3.77E-04	0	6.21E-03	3.00E-06	0	1.30E-05	7.47E-05	1.04E-01
NRPRE	MJ, NCV	2.46E+00	6.84E-01	6.69E-01	5.92E-02	2.46E-01	0	2.46E-01	3.41E-04	0	7.21E-03	8.50E-03	4.38E+00
NRPRM	MJ, NCV	9.95E-01	0	0	0	0	0	9.95E-02	0	0	0	0	1.09E+00
NRPRtotal	MJ, NCV	3.46E+00	6.84E-01	6.69E-01	5.92E-02	2.46E-01	0	3.46E-01	3.41E-04	0	7.21E-03	8.50E-03	5.48E+00
ADP	kg	0	2.20E+00	6.42E-01	6.08E-01	5.55E-02	2.31E-01	0	2.20E-01	3.17E-04	0	6.77E-03	3.96E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	5.08E-03	1.13E-01	4.39E-04	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.80E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	1.49E-04	4.90E-04	1.29E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.93E-03
NHWD	kg	1.91E-02	5.91E-04	7.52E-03	5.11E-05	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.16E-01
HLRW	kg	2.04E-07	2.08E-09	4.66E-08	4.11E-09	2.82E-09	0	2.05E-08	1.59E-11	0	9.20E-11	3.97E-10	2.81E-07
ILLRW	kg	6.91E-07	4.07E-09	7.26E-07	8.05E-09	5.52E-09	0	6.91E-08	3.69E-11	0	2.10E-10	9.18E-10	1.50E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	4.07E-03	0	0	0	0	0	0	4.50E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-1.08E-03	0	-7.49E-03	0	0	0	0	0	0	0	0	-8.57E-03
BCEK	kg CO2	0	0	1.08E-03	0	0	0	7.49E-03	0	0	0	0	8.57E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Benicia, CA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	2.85E-02	9.98E-02	1.03E-02	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	3.58E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	2.85E-02	1.02E-01	1.03E-02	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	3.58E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	2.82E-02	9.77E-02	1.02E-02	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	3.50E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	2.82E-02	9.95E-02	1.02E-02	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	3.50E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	4.05E-10	2.34E-09	1.47E-10	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	5.88E-09
Acidification	kg SO2 eq	5.88E-04	6.97E-05	2.41E-04	2.52E-05	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	1.02E-03
Eutrophication	kg N eq	7.15E-05	4.74E-06	1.49E-05	1.72E-06	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	1.03E-04
Smog	kg O3 eq	7.64E-03	1.79E-03	2.18E-03	6.48E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.39E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	9.60E-06	1.72E-05	3.48E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.36E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	1.80E-11	1.25E-10	6.53E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.11E-09
Non-carcinogenics	CTUh	9.92E-09	3.48E-09	2.41E-09	1.26E-09	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	2.12E-08
Ecotoxicity	CTUe	7.60E-02	7.10E-02	5.08E-03	2.57E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	2.20E-01
Fossil fuel depletion	MJ surplus	4.43E-01	5.37E-02	1.91E-01	1.95E-02	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	7.79E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	6.20E-04	3.66E-01	2.25E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	4.68E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	6.20E-04	3.66E-01	2.25E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	4.68E-01
NRPRE	MJ, NCV	3.92E+00	4.05E-01	1.84E+00	1.47E-01	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	6.92E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	4.05E-01	1.84E+00	1.47E-01	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	8.62E+00
ADP	kg	0	3.50E+00	3.80E-01	1.40E+00	1.38E-01	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	5.96E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	3.01E-03	5.81E-01	1.09E-03	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	9.86E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	8.84E-05	2.21E-05	3.20E-05	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.16E-03
NHWD	kg	4.05E-02	3.50E-04	5.50E-03	1.27E-04	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	3.11E-07	4.63E-09	3.25E-09	1.68E-09	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.54E-07
ILLRW	kg	1.06E-06	9.08E-09	2.87E-06	3.29E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	4.05E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Cartersville, GA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	4.96E-03	6.21E-03	2.60E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.33E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	4.96E-03	8.04E-03	2.60E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.33E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	4.90E-03	6.54E-03	2.57E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.28E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	4.90E-03	8.37E-03	2.57E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.28E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	7.05E-11	6.75E-11	3.70E-11	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	3.16E-09
Acidification	kg SO2 eq	5.88E-04	1.21E-05	1.72E-05	6.36E-06	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	7.24E-04
Eutrophication	kg N eq	7.15E-05	8.24E-07	1.95E-06	4.32E-07	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	8.50E-05
Smog	kg O3 eq	7.64E-03	3.11E-04	2.44E-04	1.63E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.00E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	1.67E-06	2.73E-06	8.76E-07	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.11E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	3.14E-12	3.20E-11	1.65E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	9.93E-10
Non-carcinogenics	CTUh	9.92E-09	6.06E-10	4.28E-10	3.18E-10	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.54E-08
Ecotoxicity	CTUe	7.60E-02	1.23E-02	1.72E-03	6.48E-03	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.39E-01
Fossil fuel depletion	MJ surplus	4.43E-01	9.35E-03	9.43E-03	4.91E-03	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	5.39E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	1.08E-04	4.37E-03	5.66E-05	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.06E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	1.08E-04	4.37E-03	5.66E-05	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.06E-01
NRPRE	MJ, NCV	3.92E+00	7.04E-02	1.33E-01	3.70E-02	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	4.76E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	7.04E-02	1.33E-01	3.70E-02	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	6.47E+00
ADP	kg	0	3.50E+00	6.61E-02	1.10E-01	3.47E-02	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.25E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	5.23E-04	9.40E-03	2.74E-04	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.11E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	1.54E-05	4.38E-05	8.08E-06	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.08E-03
NHWD	kg	4.05E-02	6.09E-05	5.61E-03	3.20E-05	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	7.68E-07	1.56E-09	1.52E-07	8.20E-10	4.10E-09	0	7.68E-08	3.65E-11	0	6.27E-10	6.83E-10	1.00E-06
ILLRW	kg	6.05E-07	8.23E-10	3.98E-08	4.32E-10	2.16E-09	0	6.05E-08	1.63E-11	0	2.83E-10	3.04E-10	7.09E-07
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Fort Worth, TX)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	1.83E-02	7.35E-03	5.76E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.51E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	1.83E-02	9.18E-03	5.76E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.51E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	1.81E-02	7.64E-03	5.70E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.45E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	1.81E-02	9.46E-03	5.70E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.45E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	2.60E-10	1.14E-10	8.19E-11	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	3.44E-09
Acidification	kg SO2 eq	5.88E-04	4.47E-05	2.33E-05	1.41E-05	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	7.71E-04
Eutrophication	kg N eq	7.15E-05	3.04E-06	1.99E-06	9.57E-07	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	8.78E-05
Smog	kg O3 eq	7.64E-03	1.15E-03	2.85E-04	3.61E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.11E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	6.16E-06	1.78E-06	1.94E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.15E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	1.16E-11	3.35E-11	3.64E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.00E-09
Non-carcinogenics	CTUh	9.92E-09	2.23E-09	4.30E-10	7.04E-10	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.74E-08
Ecotoxicity	CTUe	7.60E-02	4.55E-02	1.71E-03	1.43E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.80E-01
Fossil fuel depletion	MJ surplus	4.43E-01	3.45E-02	1.11E-02	1.09E-02	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	5.72E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	3.98E-04	7.57E-03	1.25E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.09E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	3.98E-04	7.57E-03	1.25E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.09E-01
NRPRE	MJ, NCV	3.92E+00	2.60E-01	1.42E-01	8.18E-02	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	5.01E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	2.60E-01	1.42E-01	8.18E-02	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	6.71E+00
ADP	kg	0	3.50E+00	2.44E-01	1.23E-01	7.68E-02	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.49E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	2.36E-01	1.21E-03	5.47E-02	1.12E-03	1.83E-03	0	2.36E-02	1.99E-05	0	5.66E-05	4.95E-04	3.19E-01
Output flows and waste category indicators
HWD	kg	2.93E-03	3.57E-05	4.29E-04	3.30E-05	5.38E-05	0	2.93E-04	1.52E-07	0	2.77E-07	3.78E-06	3.78E-03
NHWD	kg	1.91E-02	1.41E-04	6.60E-03	1.31E-04	2.13E-04	0	8.84E-03	6.93E-03	0	6.01E-06	1.73E-01	2.15E-01
HLRW	kg	3.11E-07	2.97E-09	3.25E-09	9.36E-10	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.52E-07
ILLRW	kg	1.06E-06	5.82E-09	8.19E-08	1.83E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.26E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Goodyear, AZ)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	2.07E-02	2.31E-02	7.74E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.71E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	2.07E-02	2.49E-02	7.74E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.71E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	2.05E-02	2.30E-02	7.65E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.65E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	2.05E-02	2.48E-02	7.65E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.65E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	2.95E-10	6.81E-10	1.10E-10	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	4.07E-09
Acidification	kg SO2 eq	5.88E-04	5.07E-05	6.79E-05	1.89E-05	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	8.26E-04
Eutrophication	kg N eq	7.15E-05	3.44E-06	5.76E-06	1.28E-06	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	9.23E-05
Smog	kg O3 eq	7.64E-03	1.30E-03	7.00E-04	4.85E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.18E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	6.98E-06	4.26E-06	2.60E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.19E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	1.31E-11	5.56E-11	4.89E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.03E-09
Non-carcinogenics	CTUh	9.92E-09	2.53E-09	7.66E-10	9.45E-10	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.83E-08
Ecotoxicity	CTUe	7.60E-02	5.16E-02	2.49E-03	1.92E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.92E-01
Fossil fuel depletion	MJ surplus	4.43E-01	3.91E-02	3.39E-02	1.46E-02	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	6.03E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	4.51E-04	2.33E-02	1.68E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.25E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	4.51E-04	2.33E-02	1.68E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.25E-01
NRPRE	MJ, NCV	3.92E+00	2.94E-01	4.53E-01	1.10E-01	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	5.38E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	2.94E-01	4.53E-01	1.10E-01	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	7.08E+00
ADP	kg	0	3.50E+00	2.76E-01	3.19E-01	1.03E-01	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.74E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	2.19E-03	4.79E-02	8.15E-04	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.51E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	6.43E-05	2.21E-05	2.40E-05	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.13E-03
NHWD	kg	4.05E-02	2.54E-04	5.50E-03	9.49E-05	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	3.11E-07	8.06E-10	3.25E-09	1.35E-09	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.50E-07
ILLRW	kg	1.06E-06	1.58E-09	3.53E-07	2.65E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.53E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Hampshire, IL)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	4.96E-03	9.62E-03	8.34E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.43E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	4.96E-03	1.14E-02	8.34E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.43E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	4.90E-03	9.89E-03	8.24E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.37E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	4.90E-03	1.17E-02	8.24E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.37E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	7.05E-11	3.15E-10	1.18E-10	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	3.49E-09
Acidification	kg SO2 eq	5.88E-04	1.21E-05	3.87E-05	2.04E-05	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	7.60E-04
Eutrophication	kg N eq	7.15E-05	8.24E-07	3.34E-06	1.38E-06	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	8.73E-05
Smog	kg O3 eq	7.64E-03	3.11E-04	4.05E-04	5.23E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.05E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	1.67E-06	2.67E-06	2.80E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.13E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	3.14E-12	4.16E-11	5.27E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.01E-09
Non-carcinogenics	CTUh	9.92E-09	6.06E-10	5.54E-10	1.02E-09	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.62E-08
Ecotoxicity	CTUe	7.60E-02	1.23E-02	2.03E-03	2.07E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.54E-01
Fossil fuel depletion	MJ surplus	4.43E-01	9.35E-03	1.17E-02	1.57E-02	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	5.52E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	1.08E-04	4.96E-03	1.81E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.07E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	1.08E-04	4.96E-03	1.81E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.07E-01
NRPRE	MJ, NCV	3.92E+00	7.04E-02	1.94E-01	1.18E-01	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	4.91E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	7.04E-02	1.94E-01	1.18E-01	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	6.61E+00
ADP	kg	0	3.50E+00	6.61E-02	1.45E-01	1.11E-01	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.37E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	5.23E-04	7.00E-03	8.79E-04	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.09E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	1.54E-05	2.21E-05	2.59E-05	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.08E-03
NHWD	kg	4.05E-02	6.09E-05	5.50E-03	1.02E-04	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	3.11E-07	8.06E-10	3.25E-09	1.35E-09	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.50E-07
ILLRW	kg	1.06E-06	1.58E-09	3.53E-07	2.65E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.53E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (York, PA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	1.02E-02	1.05E-02	3.83E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.44E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	1.02E-02	1.24E-02	3.83E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.44E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	1.01E-02	1.08E-02	3.79E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.38E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	1.01E-02	1.26E-02	3.79E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.38E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	1.45E-10	3.63E-10	5.44E-11	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	3.55E-09
Acidification	kg SO2 eq	5.88E-04	2.50E-05	4.31E-05	9.36E-06	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	7.66E-04
Eutrophication	kg N eq	7.15E-05	1.70E-06	3.71E-06	6.36E-07	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	8.78E-05
Smog	kg O3 eq	7.64E-03	6.42E-04	4.40E-04	2.40E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.06E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	3.44E-06	2.91E-06	1.29E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.13E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	6.47E-12	4.38E-11	2.42E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.01E-09
Non-carcinogenics	CTUh	9.92E-09	1.25E-09	5.87E-10	4.68E-10	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.63E-08
Ecotoxicity	CTUe	7.60E-02	2.55E-02	2.11E-03	9.53E-03	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.56E-01
Fossil fuel depletion	MJ surplus	4.43E-01	1.93E-02	1.25E-02	7.22E-03	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	5.54E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	2.23E-04	5.41E-03	8.33E-05	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.07E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	2.23E-04	5.41E-03	8.33E-05	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.07E-01
NRPRE	MJ, NCV	3.92E+00	1.45E-01	2.12E-01	5.44E-02	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	4.93E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	1.45E-01	2.12E-01	5.44E-02	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	6.64E+00
ADP	kg	0	3.50E+00	1.36E-01	1.56E-01	5.11E-02	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.39E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	1.08E-03	7.64E-03	4.04E-04	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.10E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	3.17E-05	2.21E-05	1.19E-05	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.08E-03
NHWD	kg	4.05E-02	1.26E-04	5.50E-03	4.70E-05	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	3.11E-07	1.66E-09	3.25E-09	6.22E-10	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.50E-07
ILLRW	kg	1.06E-06	3.26E-09	4.14E-07	1.22E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.59E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Milton, Ontario, Canada)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	2.07E-02	4.54E-03	8.84E-02	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	3.33E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	2.07E-02	6.36E-03	8.84E-02	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	3.33E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	2.05E-02	4.88E-03	8.72E-02	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	3.26E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	2.05E-02	6.70E-03	8.72E-02	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	3.26E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	2.95E-10	4.59E-11	1.54E-09	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	4.87E-09
Acidification	kg SO2 eq	5.88E-04	5.07E-05	1.41E-05	1.87E-04	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	9.40E-04
Eutrophication	kg N eq	7.15E-05	3.44E-06	1.25E-06	1.24E-05	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	9.89E-05
Smog	kg O3 eq	7.64E-03	1.30E-03	2.06E-04	4.45E-03	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.52E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	6.98E-06	1.27E-06	2.22E-05	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.36E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	1.31E-11	2.92E-11	4.96E-11	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.05E-09
Non-carcinogenics	CTUh	9.92E-09	2.53E-09	3.66E-10	4.63E-09	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	2.15E-08
Ecotoxicity	CTUe	7.60E-02	5.16E-02	1.57E-03	8.55E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	2.57E-01
Fossil fuel depletion	MJ surplus	4.43E-01	3.91E-02	7.16E-03	1.61E-01	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	7.23E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	4.51E-04	2.67E-03	3.40E-03	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.08E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	4.51E-04	2.67E-03	3.40E-03	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.08E-01
NRPRE	MJ, NCV	3.92E+00	2.94E-01	9.61E-02	1.22E+00	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	6.13E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	2.94E-01	9.61E-02	1.22E+00	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	7.83E+00
ADP	kg	0	3.50E+00	2.76E-01	8.78E-02	1.14E+00	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	5.55E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	2.19E-03	3.72E-03	1.28E-02	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.19E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	6.43E-05	2.21E-05	1.86E-04	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.29E-03
NHWD	kg	4.05E-02	2.54E-04	5.50E-03	1.18E-03	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.93E-01
HLRW	kg	3.11E-07	3.37E-09	3.25E-09	2.02E-08	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.71E-07
ILLRW	kg	1.06E-06	6.60E-09	1.00E-08	5.58E-08	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.25E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-25 (Sherwood, Alberta, Canada)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	1.79E-01	6.43E-03	3.58E-02	8.23E-03	1.30E-02	0	2.39E-02	1.31E-04	0	1.58E-03	2.45E-03	2.70E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	1.82E-01	6.43E-03	3.76E-02	8.23E-03	1.30E-02	0	1.83E-02	1.31E-04	0	1.58E-03	2.45E-03	2.70E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	1.74E-01	6.36E-03	3.56E-02	8.13E-03	1.29E-02	0	2.34E-02	1.16E-04	0	1.56E-03	2.16E-03	2.64E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-3.77E-03	0	-1.83E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	1.77E-01	6.36E-03	3.74E-02	8.13E-03	1.29E-02	0	1.78E-02	1.16E-04	0	1.56E-03	2.16E-03	2.64E-01
Ozone depletion	kg CFC-11 eq	2.52E-09	9.14E-11	4.55E-10	1.17E-10	1.85E-10	0	2.52E-10	3.96E-13	0	2.58E-11	7.39E-12	3.65E-09
Acidification	kg SO2 eq	5.88E-04	1.57E-05	1.30E-04	2.01E-05	3.18E-05	0	5.89E-05	9.09E-08	0	7.62E-06	1.70E-06	8.55E-04
Eutrophication	kg N eq	7.15E-05	1.07E-06	1.14E-05	1.37E-06	2.16E-06	0	7.17E-06	2.39E-08	0	4.83E-07	4.47E-07	9.56E-05
Smog	kg O3 eq	7.64E-03	4.03E-04	1.23E-03	5.16E-04	8.16E-04	0	7.66E-04	1.98E-02	0	2.34E-04	4.69E-05	3.14E-02
Respiratory effects	kg PM2.5 eq	9.09E-05	2.16E-06	7.75E-06	2.77E-06	4.38E-06	0	9.10E-06	1.33E-08	0	9.53E-07	2.48E-07	1.18E-04
Additional environmental information
Carcinogenics	CTUh	8.43E-10	4.06E-12	8.43E-11	5.20E-12	8.23E-12	0	8.50E-11	1.00E-12	0	3.34E-13	1.87E-11	1.05E-09
Non-carcinogenics	CTUh	9.92E-09	7.85E-10	1.30E-09	1.00E-09	1.59E-09	0	1.04E-09	7.07E-11	0	6.89E-11	1.32E-09	1.71E-08
Ecotoxicity	CTUe	7.60E-02	1.60E-02	3.35E-03	2.05E-02	3.24E-02	0	7.68E-03	1.08E-04	0	2.02E-04	2.02E-03	1.58E-01
Fossil fuel depletion	MJ surplus	4.43E-01	1.21E-02	4.31E-02	1.55E-02	2.45E-02	0	4.43E-02	4.38E-05	0	2.93E-03	8.18E-04	5.86E-01
Resource use indicators
RPRE	MJ, NCV	9.18E-02	1.40E-04	1.98E-02	1.79E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.21E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	9.18E-02	1.40E-04	1.98E-02	1.79E-04	2.83E-04	0	9.18E-03	3.00E-06	0	3.91E-05	5.60E-05	1.21E-01
NRPRE	MJ, NCV	3.92E+00	9.13E-02	5.00E-01	1.17E-01	1.85E-01	0	3.92E-01	3.41E-04	0	2.17E-02	6.38E-03	5.23E+00
NRPRM	MJ, NCV	1.55E+00	0	0	0	0	0	1.55E-01	0	0	0	0	1.70E+00
NRPRtotal	MJ, NCV	5.47E+00	9.13E-02	5.00E-01	1.17E-01	1.85E-01	0	5.47E-01	3.41E-04	0	2.17E-02	6.38E-03	6.93E+00
ADP	kg	0	3.50E+00	8.57E-02	4.58E-01	1.10E-01	1.74E-01	0	3.50E-01	3.17E-04	0	2.04E-02	4.70E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	3.62E-01	6.78E-04	4.32E-02	8.67E-04	1.37E-03	0	3.62E-02	1.99E-05	0	1.70E-04	3.71E-04	4.45E-01
Output flows and waste category indicators
HWD	kg	4.52E-03	1.99E-05	2.21E-05	2.55E-05	4.04E-05	0	4.52E-04	1.52E-07	0	8.33E-07	2.83E-06	5.08E-03
NHWD	kg	4.05E-02	7.89E-05	5.50E-03	1.01E-04	1.60E-04	0	9.25E-03	6.93E-03	0	1.81E-05	1.29E-01	1.92E-01
HLRW	kg	3.11E-07	3.37E-09	3.25E-09	2.02E-08	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.71E-07
ILLRW	kg	1.06E-06	6.60E-09	1.00E-08	5.58E-08	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	1.25E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	2.10E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.26E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-3.77E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-9.37E-03
BCEK	kg CO2	0	0	3.77E-03	0	0	0	5.60E-03	0	0	0	0	9.37E-03
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Benicia, CA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	3.29E-02	1.76E-01	8.45E-03	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	4.73E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	3.29E-02	1.77E-01	8.45E-03	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	4.73E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	3.25E-02	1.72E-01	8.35E-03	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	4.61E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	3.25E-02	1.73E-01	8.35E-03	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	4.61E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	4.67E-10	4.94E-09	1.20E-10	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.05E-06
Acidification	kg SO2 eq	6.97E-04	8.02E-05	4.66E-04	2.06E-05	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.38E-03
Eutrophication	kg N eq	8.91E-05	5.45E-06	3.64E-05	1.40E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.45E-04
Smog	kg O3 eq	9.06E-03	2.06E-03	5.18E-03	5.30E-04	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.64E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	1.10E-05	5.33E-05	2.84E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.92E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	2.08E-11	2.28E-10	5.34E-12	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.37E-09
Non-carcinogenics	CTUh	1.14E-08	4.01E-09	4.52E-09	1.03E-09	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.57E-08
Ecotoxicity	CTUe	8.98E-02	8.17E-02	2.59E-02	2.10E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	2.63E-01
Fossil fuel depletion	MJ surplus	5.18E-01	6.19E-02	4.59E-01	1.59E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	1.14E+00
Resource use indicators
RPRE	MJ, NCV	1.07E-01	7.14E-04	4.00E-01	1.84E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	5.19E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	7.14E-04	4.00E-01	1.84E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	5.19E-01
NRPRE	MJ, NCV	4.60E+00	4.66E-01	4.08E+00	1.20E-01	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	9.94E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	4.66E-01	4.08E+00	1.20E-01	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	1.19E+01
ADP	kg	0	4.11E+00	4.38E-01	3.43E+00	1.13E-01	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	8.69E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	3.46E-03	7.57E-01	8.91E-04	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	1.24E+00
Output flows and waste category indicators
HWD	kg	2.35E-03	1.92E-06	7.67E-04	4.95E-07	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-04	4.34E-05	4.14E-03	1.12E-05	1.72E-05	0	2.63E-05	4.12E-08	0	6.20E-06	7.70E-07	4.50E-03
HLRW	kg	3.11E-07	4.63E-09	3.25E-09	1.68E-09	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.54E-07
ILLRW	kg	1.06E-06	9.08E-09	2.87E-06	3.29E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	4.05E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Cartersville, GA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	5.70E-03	8.25E-02	1.05E-02	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	3.54E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	5.70E-03	8.36E-02	1.05E-02	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	3.54E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	5.63E-03	8.05E-02	1.03E-02	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	3.45E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	5.63E-03	8.17E-02	1.03E-02	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	3.45E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	8.09E-11	2.71E-09	1.49E-10	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	1.39E-05	2.46E-04	2.55E-05	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.09E-03
Eutrophication	kg N eq	8.91E-05	9.46E-07	2.32E-05	1.74E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.27E-04
Smog	kg O3 eq	9.06E-03	3.57E-04	3.26E-03	6.55E-04	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.29E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	1.92E-06	3.77E-05	3.52E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.68E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	3.60E-12	1.35E-10	6.61E-12	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.26E-09
Non-carcinogenics	CTUh	1.14E-08	6.95E-10	2.55E-09	1.28E-09	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.07E-08
Ecotoxicity	CTUe	8.98E-02	1.42E-02	2.25E-02	2.60E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	1.97E-01
Fossil fuel depletion	MJ surplus	5.18E-01	1.07E-02	2.78E-01	1.97E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	9.07E-01
Resource use indicators
RPRE	MJ, NCV	1.07E-01	1.24E-04	3.81E-02	2.27E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	1.24E-04	3.81E-02	2.27E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
NRPRE	MJ, NCV	4.60E+00	8.09E-02	2.36E+00	1.48E-01	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	7.87E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	8.09E-02	2.36E+00	1.48E-01	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	9.87E+00
ADP	kg	0	4.11E+00	7.59E-02	2.14E+00	1.39E-01	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.07E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	6.00E-04	1.81E-01	1.10E-03	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	6.63E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	3.33E-07	7.67E-04	6.12E-07	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-01	7.53E-03	2.65E-01	1.38E-02	1.72E-02	0	2.63E-02	4.12E-05	0	6.20E-03	7.70E-04	5.96E-01
HLRW	kg	3.76E-07	5.34E-09	1.99E-07	1.37E-09	2.12E-09	0	3.78E-08	1.59E-11	0	2.78E-10	2.98E-10	6.22E-07
ILLRW	kg	1.26E-06	1.05E-08	3.37E-06	2.69E-09	4.14E-09	0	1.26E-07	3.69E-11	0	6.36E-10	6.89E-10	4.77E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Forth Worth, TX)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	2.08E-02	8.31E-02	1.55E-03	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	3.61E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	2.08E-02	8.43E-02	1.55E-03	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	3.61E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	2.05E-02	8.11E-02	1.53E-03	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	3.52E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	2.05E-02	8.23E-02	1.53E-03	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	3.52E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	2.95E-10	2.70E-09	2.20E-11	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	5.07E-05	2.48E-04	3.78E-06	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.11E-03
Eutrophication	kg N eq	8.91E-05	3.45E-06	2.34E-05	2.57E-07	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.28E-04
Smog	kg O3 eq	9.06E-03	1.30E-03	3.28E-03	9.69E-05	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.33E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	6.98E-06	3.78E-05	5.20E-07	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.70E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	1.31E-11	1.35E-10	9.78E-13	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.26E-09
Non-carcinogenics	CTUh	1.14E-08	2.53E-09	2.54E-09	1.89E-10	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.14E-08
Ecotoxicity	CTUe	8.98E-02	5.17E-02	2.25E-02	3.85E-03	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	2.12E-01
Fossil fuel depletion	MJ surplus	5.18E-01	3.91E-02	2.79E-01	2.91E-03	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	9.19E-01
Resource use indicators
RPRE	MJ, NCV	1.07E-01	4.52E-04	4.06E-02	3.36E-05	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.60E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	4.52E-04	4.06E-02	3.36E-05	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.60E-01
NRPRE	MJ, NCV	4.60E+00	2.95E-01	2.37E+00	2.20E-02	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	7.96E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	2.95E-01	2.37E+00	2.20E-02	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	9.96E+00
ADP	kg	0	4.11E+00	2.77E-01	2.15E+00	2.06E-02	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.16E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	2.19E-03	1.77E-01	1.63E-04	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	6.59E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	1.22E-06	7.67E-04	9.05E-08	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-01	2.75E-02	2.82E-01	2.05E-03	1.72E-02	0	2.63E-02	4.12E-05	0	6.20E-03	7.70E-04	6.22E-01
HLRW	kg	3.76E-07	3.37E-09	1.99E-07	2.51E-10	2.12E-09	0	3.78E-08	1.59E-11	0	2.78E-10	2.98E-10	6.19E-07
ILLRW	kg	1.26E-06	6.60E-09	5.68E-07	4.92E-10	4.14E-09	0	1.26E-07	3.69E-11	0	6.36E-10	6.89E-10	1.96E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Goodyear, AZ)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	2.30E-02	9.84E-02	9.31E-03	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	3.86E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	2.30E-02	9.96E-02	9.31E-03	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	3.86E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	2.28E-02	9.61E-02	9.20E-03	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	3.77E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	2.28E-02	9.73E-02	9.20E-03	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	3.77E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	3.27E-10	3.26E-09	1.32E-10	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	5.63E-05	2.92E-04	2.27E-05	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.18E-03
Eutrophication	kg N eq	8.91E-05	3.83E-06	2.71E-05	1.55E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.34E-04
Smog	kg O3 eq	9.06E-03	1.44E-03	3.69E-03	5.83E-04	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.43E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	7.75E-06	4.02E-05	3.13E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.76E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	1.46E-11	1.57E-10	5.88E-12	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.29E-09
Non-carcinogenics	CTUh	1.14E-08	2.81E-09	2.87E-09	1.14E-09	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.30E-08
Ecotoxicity	CTUe	8.98E-02	5.73E-02	2.33E-02	2.32E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	2.38E-01
Fossil fuel depletion	MJ surplus	5.18E-01	4.34E-02	3.01E-01	1.75E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	9.61E-01
Resource use indicators
RPRE	MJ, NCV	1.07E-01	5.01E-04	5.61E-02	2.02E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.75E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	5.01E-04	5.61E-02	2.02E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.75E-01
NRPRE	MJ, NCV	4.60E+00	3.27E-01	2.67E+00	1.32E-01	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	8.41E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	3.27E-01	2.67E+00	1.32E-01	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	1.04E+01
ADP	kg	0	4.11E+00	3.07E-01	2.34E+00	1.24E-01	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.49E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	2.43E-03	2.21E-01	9.81E-04	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	7.04E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	1.35E-06	7.67E-04	5.45E-07	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-04	3.05E-05	7.59E-04	1.23E-05	1.72E-05	0	2.63E-05	4.12E-08	0	6.20E-06	7.70E-07	1.11E-03
HLRW	kg	3.76E-07	3.74E-09	1.99E-07	1.51E-09	2.12E-09	0	3.78E-08	1.59E-11	0	2.78E-10	2.98E-10	6.21E-07
ILLRW	kg	1.26E-06	7.33E-09	1.46E-06	2.96E-09	4.14E-09	0	1.26E-07	3.69E-11	0	6.36E-10	6.89E-10	2.86E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Hampshire, IL)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	5.70E-03	8.53E-02	6.54E-03	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	3.53E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	5.70E-03	8.65E-02	6.54E-03	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	3.53E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	5.63E-03	8.33E-02	6.46E-03	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	3.44E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	5.63E-03	8.45E-02	6.46E-03	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	3.44E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	8.09E-11	2.90E-09	9.29E-11	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	1.39E-05	2.63E-04	1.60E-05	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.10E-03
Eutrophication	kg N eq	8.91E-05	9.46E-07	2.47E-05	1.09E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.28E-04
Smog	kg O3 eq	9.06E-03	3.57E-04	3.40E-03	4.10E-04	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.27E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	1.92E-06	3.86E-05	2.20E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.68E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	3.60E-12	1.43E-10	4.13E-12	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.27E-09
Non-carcinogenics	CTUh	1.14E-08	6.95E-10	2.66E-09	7.98E-10	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.03E-08
Ecotoxicity	CTUe	8.98E-02	1.42E-02	2.28E-02	1.63E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	1.88E-01
Fossil fuel depletion	MJ surplus	5.18E-01	1.07E-02	2.79E-01	1.23E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	9.01E-01
Resource use indicators
RPRE	MJ, NCV	1.07E-01	1.24E-04	3.81E-02	1.42E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	1.24E-04	3.81E-02	1.42E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
NRPRE	MJ, NCV	4.60E+00	8.09E-02	2.42E+00	9.28E-02	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	7.87E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	8.09E-02	2.42E+00	9.28E-02	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	9.87E+00
ADP	kg	0	4.11E+00	7.59E-02	2.17E+00	8.71E-02	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.05E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	6.00E-04	1.80E-01	6.89E-04	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	6.61E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	3.33E-07	7.67E-04	3.83E-07	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-01	7.53E-03	2.77E-01	8.64E-03	1.72E-02	0	2.63E-02	4.12E-05	0	6.20E-03	7.70E-04	6.03E-01
HLRW	kg	3.76E-07	9.25E-10	1.99E-07	1.06E-09	2.12E-09	0	3.78E-08	1.59E-11	0	2.78E-10	2.98E-10	6.17E-07
ILLRW	kg	1.26E-06	1.81E-09	8.34E-07	2.08E-09	4.14E-09	0	1.26E-07	3.69E-11	0	6.36E-10	6.89E-10	2.23E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (York, PA)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	1.15E-02	8.62E-02	2.62E-02	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	3.79E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	1.15E-02	8.73E-02	2.62E-02	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	3.79E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	1.13E-02	8.42E-02	2.59E-02	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	3.70E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	1.13E-02	8.53E-02	2.59E-02	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	3.70E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	1.63E-10	2.95E-09	3.72E-10	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	2.80E-05	2.67E-04	6.39E-05	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.17E-03
Eutrophication	kg N eq	8.91E-05	1.90E-06	2.51E-05	4.34E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.33E-04
Smog	kg O3 eq	9.06E-03	7.19E-04	3.43E-03	1.64E-03	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.44E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	3.86E-06	3.89E-05	8.80E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.76E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	7.25E-12	1.46E-10	1.65E-11	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.28E-09
Non-carcinogenics	CTUh	1.14E-08	1.40E-09	2.69E-09	3.19E-09	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.35E-08
Ecotoxicity	CTUe	8.98E-02	2.85E-02	2.29E-02	6.51E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	2.51E-01
Fossil fuel depletion	MJ surplus	5.18E-01	2.16E-02	2.80E-01	4.93E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	9.50E-01
Resource use indicators
RPRE	MJ, NCV	1.07E-01	2.49E-04	3.85E-02	5.69E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.58E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	2.49E-04	3.85E-02	5.69E-04	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.58E-01
NRPRE	MJ, NCV	4.60E+00	1.63E-01	2.43E+00	3.71E-01	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	8.25E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	1.63E-01	2.43E+00	3.71E-01	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	1.02E+01
ADP	kg	0	4.11E+00	3.07E-01	2.11E+00	6.96E-01	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.83E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	1.21E-03	1.81E-01	2.76E-03	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	6.64E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	6.71E-07	7.67E-04	1.53E-06	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-01	1.52E-02	2.90E-01	3.46E-02	1.72E-02	0	2.63E-02	4.12E-05	0	6.20E-03	7.70E-04	6.50E-01
HLRW	kg	3.11E-07	4.63E-09	3.25E-09	1.68E-09	2.12E-09	0	3.11E-08	1.59E-11	0	2.77E-10	2.98E-10	3.54E-07
ILLRW	kg	1.06E-06	9.08E-09	2.87E-06	3.29E-09	4.14E-09	0	1.06E-07	3.69E-11	0	6.34E-10	6.89E-10	4.05E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Milton, Ontario, Canada)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	2.30E-02	8.03E-02	5.44E-02	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	4.13E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	2.30E-02	8.15E-02	5.44E-02	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	4.13E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	2.28E-02	7.84E-02	5.37E-02	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	4.04E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	2.28E-02	7.95E-02	5.37E-02	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	4.04E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	3.27E-10	2.64E-09	9.83E-10	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	5.63E-05	2.39E-04	1.12E-04	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.22E-03
Eutrophication	kg N eq	8.91E-05	3.83E-06	2.27E-05	7.37E-06	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.35E-04
Smog	kg O3 eq	9.06E-03	1.44E-03	3.20E-03	2.62E-03	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.58E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	7.75E-06	3.73E-05	1.28E-05	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	1.83E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	1.46E-11	1.31E-10	2.98E-11	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.29E-09
Non-carcinogenics	CTUh	1.14E-08	2.81E-09	2.47E-09	2.18E-09	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	2.36E-08
Ecotoxicity	CTUe	8.98E-02	5.73E-02	2.23E-02	3.80E-02	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	2.52E-01
Fossil fuel depletion	MJ surplus	5.18E-01	4.34E-02	2.75E-01	9.88E-02	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	1.02E+00
Resource use indicators
RPRE	MJ, NCV	1.07E-01	5.01E-04	3.58E-02	2.26E-03	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	5.01E-04	3.58E-02	2.26E-03	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.57E-01
NRPRE	MJ, NCV	4.60E+00	3.27E-01	2.32E+00	7.44E-01	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	8.67E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	3.27E-01	2.32E+00	7.44E-01	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	1.07E+01
ADP	kg	0	4.11E+00	1.18E+00	2.48E+00	4.98E-02	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	8.43E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	2.43E-03	1.78E-01	8.24E-03	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	6.68E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	1.35E-06	7.67E-04	2.40E-05	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.39E-03
NHWD	kg	2.60E-01	3.05E-02	1.99E-01	8.65E-02	1.72E-02	0	2.63E-02	4.12E-05	0	6.20E-03	7.70E-04	6.27E-01
HLRW	kg	7.84E-09	6.15E-11	4.17E-09	3.14E-10	3.48E-11	0	7.86E-10	3.10E-13	0	5.34E-12	5.79E-12	1.32E-08
ILLRW	kg	1.63E-06	1.10E-08	7.03E-07	5.02E-08	6.22E-09	0	1.63E-07	5.25E-11	0	9.08E-10	9.81E-10	2.56E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0

LCIA results, resource use, output and waste flows, and carbon emissions & removals per functional unit (1m2) of VOCOMP®-30 (Sherwood, Alberta, Canada)

Parameters	Unit	Stage 1 - Product Stage			Stage 2 - Design & Construction Stage			Stage 3 - Use & Maintenance Stage			Stage 4 - End-of-Life Stage		Total
Parameters	Unit	1-1	1-2	1-3	2-1	2-2	2-3	3-1	3-2	3-3	4-1	4-2	Total
LCIA results
GWP, IPCCTOTAL	kg CO2 eq	2.10E-01	8.89E-02	1.11E-01	3.74E-03	1.30E-02	0	2.81E-02	1.31E-04	0	1.59E-03	2.45E-03	4.59E-01
GWP, IPCCBIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, IPCCFOSSIL	kg CO2 eq	2.15E-01	8.89E-02	1.12E-01	3.74E-03	1.30E-02	0	2.25E-02	1.31E-04	0	1.59E-03	2.45E-03	4.59E-01
GWP, TRACI 2.1TOTAL	kg CO2 eq	2.05E-01	8.79E-02	1.08E-01	3.70E-03	1.29E-02	0	2.74E-02	1.16E-04	0	1.57E-03	2.16E-03	4.49E-01
GWP, TRACI 2.1BIOGENIC	kg CO2 eq	-4.45E-03	0	-1.15E-03	0	0	0	5.60E-03	0	0	0	0	0
GWP, TRACI 2.1FOSSIL	kg CO2 eq	2.09E-01	8.79E-02	1.10E-01	3.70E-03	1.29E-02	0	2.18E-02	1.16E-04	0	1.57E-03	2.16E-03	4.49E-01
Ozone depletion	kg CFC-11 eq	9.45E-07	1.26E-09	3.04E-09	5.31E-11	1.85E-10	0	9.45E-08	3.96E-13	0	2.59E-11	7.39E-12	1.04E-06
Acidification	kg SO2 eq	6.97E-04	2.17E-04	3.53E-04	9.13E-06	3.18E-05	0	7.04E-05	9.09E-08	0	7.65E-06	1.70E-06	1.39E-03
Eutrophication	kg N eq	8.91E-05	1.48E-05	3.26E-05	6.21E-07	2.16E-06	0	9.09E-06	2.39E-08	0	4.84E-07	4.47E-07	1.49E-04
Smog	kg O3 eq	9.06E-03	5.57E-03	4.20E-03	2.34E-04	8.16E-04	0	9.25E-04	5.75E-02	0	2.35E-04	4.69E-05	7.86E-02
Respiratory effects	kg PM2.5 eq	1.08E-04	2.99E-05	4.36E-05	1.26E-06	4.38E-06	0	1.09E-05	1.33E-08	0	9.56E-07	2.48E-07	2.00E-04
Additional environmental information
Carcinogenics	CTUh	9.81E-10	5.62E-11	1.85E-10	2.36E-12	8.23E-12	0	1.06E-10	1.00E-12	0	3.35E-13	1.87E-11	1.36E-09
Non-carcinogenics	CTUh	1.14E-08	1.09E-08	3.39E-09	4.57E-10	1.59E-09	0	1.68E-09	7.07E-11	0	6.91E-11	1.32E-09	3.09E-08
Ecotoxicity	CTUe	8.98E-02	2.21E-01	2.41E-02	9.30E-03	3.24E-02	0	9.79E-03	1.08E-04	0	2.02E-04	2.02E-03	3.89E-01
Fossil fuel depletion	MJ surplus	5.18E-01	1.67E-01	3.10E-01	7.05E-03	2.45E-02	0	5.21E-02	4.38E-05	0	2.94E-03	8.18E-04	1.08E+00
Resource use indicators
RPRE	MJ, NCV	1.07E-01	1.93E-03	5.27E-02	8.13E-05	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.73E-01
RPRM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RPRtotal	MJ, NCV	1.07E-01	1.93E-03	5.27E-02	8.13E-05	2.83E-04	0	1.08E-02	3.00E-06	0	3.93E-05	5.60E-05	1.73E-01
NRPRE	MJ, NCV	4.60E+00	1.26E+00	2.72E+00	5.31E-02	1.85E-01	0	4.63E-01	3.41E-04	0	2.18E-02	6.38E-03	9.31E+00
NRPRM	MJ, NCV	1.82E+00	0	0	0	0	0	1.82E-01	0	0	0	0	2.00E+00
NRPRtotal	MJ, NCV	6.42E+00	1.26E+00	2.72E+00	5.31E-02	1.85E-01	0	6.45E-01	3.41E-04	0	2.18E-02	6.38E-03	1.13E+01
ADP	kg	0	4.11E+00	1.53E-01	2.18E+00	3.49E-01	1.74E-01	0	4.13E-01	3.17E-04	0	2.04E-02	7.40E+00
SM	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
NRSF	MJ, NCV	0	0	0	0	0	0	0	0	0	0	0	0
RE	m3	0	0	0	0	0	0	0	0	0	0	0	0
FW	MJ, LHV	4.34E-01	9.37E-03	2.16E-01	3.94E-04	1.37E-03	0	4.36E-02	1.99E-05	0	1.71E-04	3.71E-04	7.05E-01
Output flows and waste category indicators
HWD	kg	2.35E-03	5.20E-06	7.67E-04	2.19E-07	7.62E-07	0	2.38E-04	4.52E-07	0	7.89E-07	8.45E-06	3.37E-03
NHWD	kg	2.60E-04	1.18E-04	9.10E-04	4.95E-06	1.72E-05	0	2.63E-05	4.12E-08	0	6.20E-06	7.70E-07	1.34E-03
HLRW	kg	3.76E-07	1.86E-09	1.99E-07	4.25E-09	2.12E-09	0	3.78E-08	1.59E-11	0	2.78E-10	2.98E-10	6.21E-07
ILLRW	kg	1.26E-06	3.65E-09	8.93E-07	8.32E-09	4.14E-09	0	1.26E-07	3.69E-11	0	6.36E-10	6.89E-10	2.29E-06
CRU	kg	0	0	0	0	0	0	0	0	0	0	0	0
MR	kg	4.27E-04	0	0	0	3.05E-03	0	0	0	0	0	0	3.48E-03
MER	kg	0	0	0	0	0	0	0	0	0	0	0	0
EE	MJ	0	0	0	0	0	0	0	0	0	0	0	0
Carbon emissions and removals
BCRP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCEP	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
BCRK	kg CO2	-4.45E-03	0	-5.60E-03	0	0	0	0	0	0	0	0	-1.00E-02
BCEK	kg CO2	0	0	4.45E-03	0	0	0	5.60E-03	0	0	0	0	1.00E-02
CBCEW	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCE	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CCR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
CWNR	kg CO2	0	0	0	0	0	0	0	0	0	0	0	0
