Download PDF
AIR-SHIELD™
AIR-SHIELD™ THRU-WALL FLASHING
AIR-SHIELD™ LOW TEMP
AIR-SHIELD™ XLT

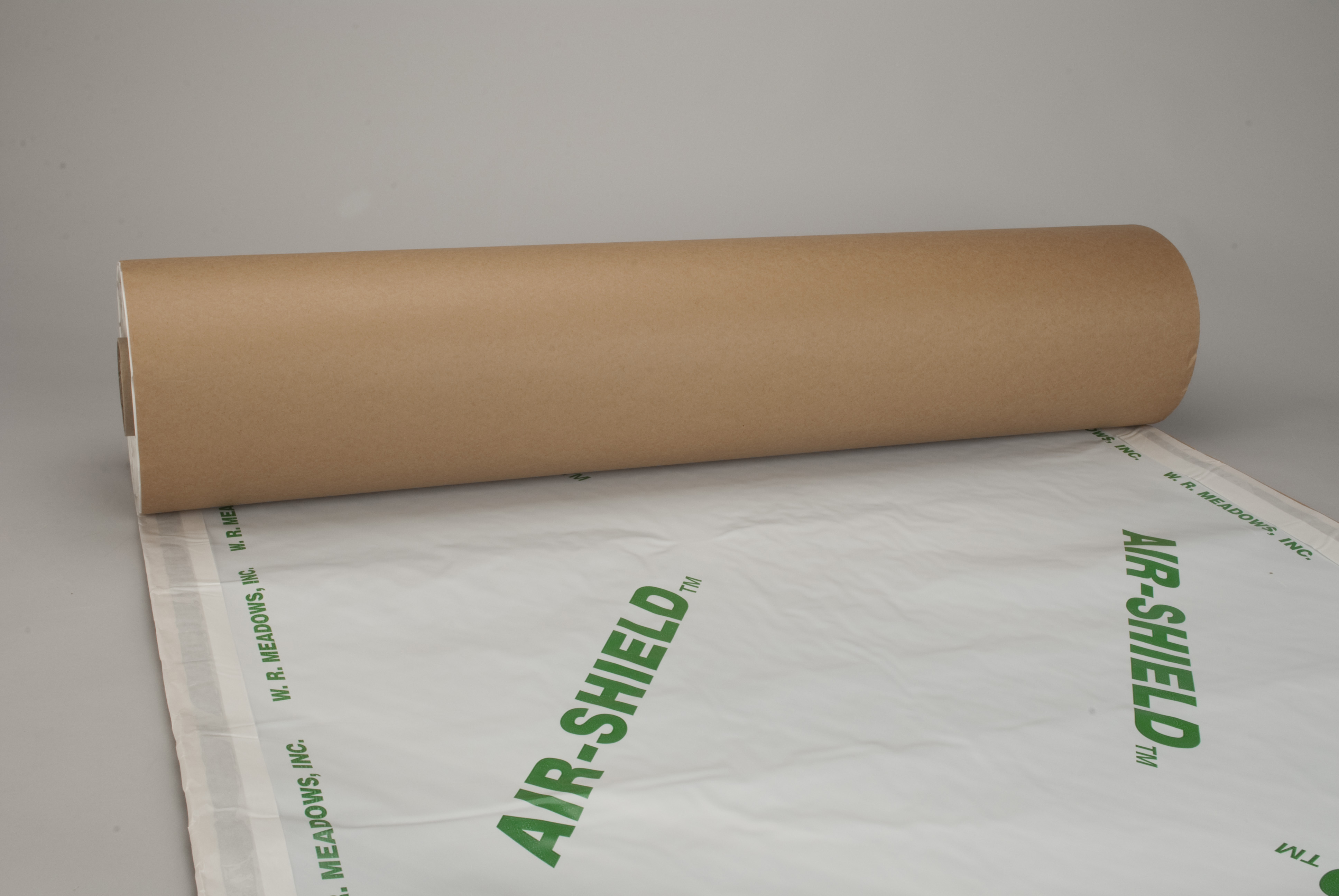

AIR-SHIELD self-adhering air/vapor and liquid moisture barrier is a part of a total system to complete the building envelope. It is a roll-type product that is nominally 40 mils thick. This unique, self-adhesive membrane, protected by a special release paper, is strong and durable. It remains flexible when surface mounted and will adhere to most primed surfaces at minimum
temperatures of 40° F (4° C).

Performance dashboard

Features & functionality

  • Low permeability
  • Prevents the transmission of air and inhibits moisture vapor through porous building materials
  • Provides a complete above-grade air, vapor, and water barrier on a variety of construction materials
  • Controlled thickness membrane is ideal for air barrier applications
  • Cross-laminated polyethylene film has excellent tensile strength, elongation, and tear resistance
  • Modified membrane is flexible at low temperatures


Visit W.R. MEADOWS for more product information:

AIR-SHIELD™
AIR-SHIELD™ THRU-WALL FLASHING TAPE
AIR-SHIELD™ LOW TEMP
AIR-SHIELD™ XLT

Environment & materials

Improved by:

  • Made in the United States
  • USGBC member
  • CAGBC member


Certifications, rating systems & disclosures:

  • Health Product Declaration
  • Build America, Buy America Act compliant
    (AIR-SHIELD™ THRU-WALL FLASHING, AIR-SHIELD™ LOW TEMP, AIR-SHIELD™ XLT)

MasterFormat® 07 27 13

AIR-SHIELD Guide Specs

For spec help, contact us or call 800-342-5976.

See LCA, interpretation & rating systems

  • VERIFICATION LCA
  • 3rd-party reviewed
  • Transparency Report (EPD)
  • 3rd-party verified

Validity: 05/27/25 – 05/27/30
SM-WRM – 05272025 – 007


This Environmental Product Declaration (EPD) was externally verified by Lindita Bushi, PhD, Senior Research Associate at Athena, in accordance with ISO 21930:2017, ASTM International. (2023). Product Category Rules (PCR) for Preparing an Environmental Product Declaration (EPD) for Water-Resistive and Air Barriers as well as ISO 14025:2006.

Athena Sustainable Materials Institute
600 Grings Hill Road
Sinking Spring, PA 19608
https://www.athenasmi.org/
(610) 985-0933

SUMMARY

Reference PCR
ASTM PCR for Water-Resistive and Air Barriers

Regions; system boundaries
North America; Cradle-to-gate

Declared unit: 1 m2

LCIA methodology: TRACI 2.1

LCA software; LCI database
SimaPro Developer 9.6; ecoinvent v3.10, US-EI 2.2

Public LCA:
LCA of W. R. MEADOWS Water-Resistive and Air Barriers

In accordance with ISO 14044 and the reference PCR, this life cycle assessment was conducted by Sustainable Minds and reviewed by Lindita Bushi, PhD, Senior Research Associate, at Athena.
